The FIRST and ONLY Flat Panel mount that
SAVES YOUR DRY ERASE BOARD!
Diversimount™ TV is a purpose built over-chalk-board mount for your
Interactive or Consumer-based LED Flat Panel Display!

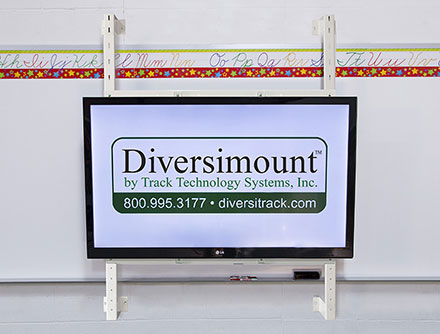

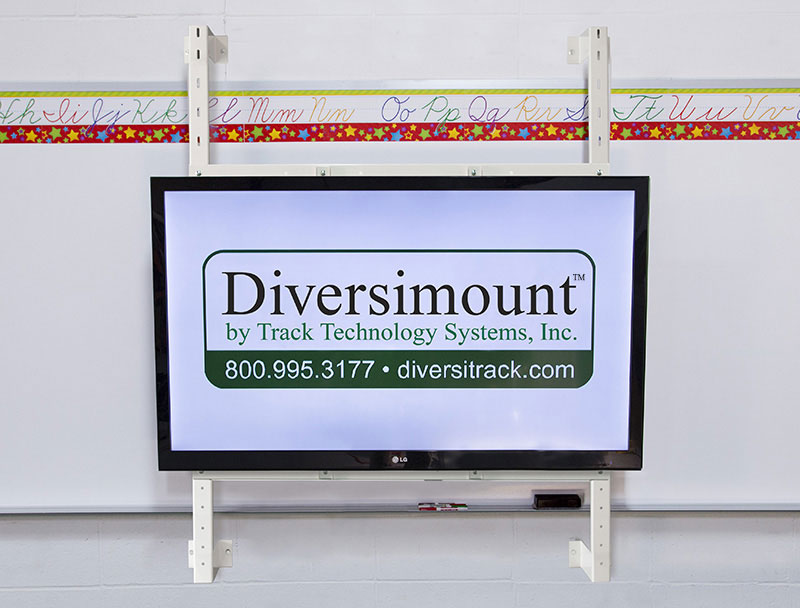

Diversimount TV Stationary Mount

Diversimount™ TV is a stationary, over-chalk-board wall mount supporting ALL brands of interactive and Consumer Flat Panel display screens. You can mount your large format LED or LCD TV screen in front of almost anything on your classroom or boardroom wall. Whether you have a dry erase board, chalk board, shelving or casework you can simply mount your TV into position over any existing surface using any number of fastening systems. Diversimount™ TV is professionally manufactured and constructed from strong carbon steel with an epoxy powder coat finish in Oyster White.

The Diversimount™ TV System is secure, flexible and adjustable:

  • Diversimount™ TV costs LESS than drilling into & ruining your
    dry erase board
  • Fastens above and below your existing chalk board, dry erase
    board or other casework.
  • Clears a standard chalk tray
  • 5-position vertically adjustable up to 10 inches
  • Perfect for new or existing construction
  • Simple to assemble and install

Diversimount™ TV can also be used with our newest product, Diversiboard to give you a perfect projection surface or marker board surface!

Diversimount™ TV Specifications

Diversimount TV Stationary Mount

Diversimount™ TV employs a unique system of two uprights with a cross member and 5 mounting positions equaling 10 inches of adjustability truly making it a “one size fits all” solution. It also borrows some key design elements from our flagship track mount system, Diversitrack™ , namely our flexible clip system.

Track Technology Systems, Inc. is actively seeking dealership opportunities in all states. Please call us to ask about more information.

Diversimount TV Mount Flyer
Download
intro flyer of
Diversimount™
TV product:
CLICK IMAGE

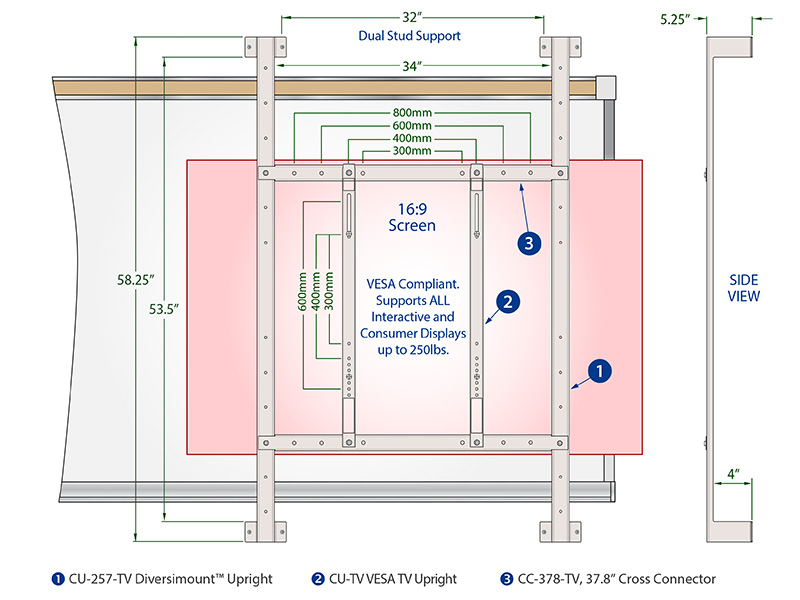

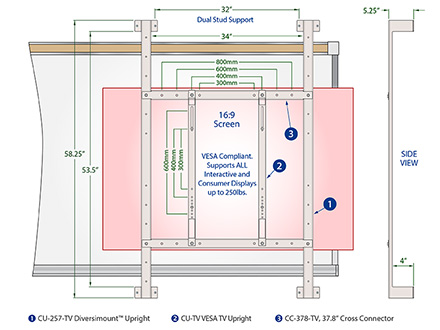

Diversimount TV Mount Technical Drawing
Download
Diversimont TV
Technical
Drawing:
CLICK IMAGE

Diversitrack™ System

Our patented Diversitrack™ is the first sliding track mount system of its kind supporting the industry’s top brands of interactive whiteboards, standard and interactive projectors, dry erase boards and big screen LED TV’s!

Diversitrack™ allows you to retain your dry erase and chalk board space while enabling you to use the media device of your choice where you want it, when you want it. Best of all at a cost that is less than drilling into or removing your existing dry erase or chalk board!

Diversitrack™ employs a very secure and durable dual-track system, which includes rails that attach above and below your existing chalk or dry erase board. Diversitrack™ optional accessories include a mechanical brake, additional track sections and custom roller lengths.


Manufacturers of weight-compliant Interactive Flat Panel Touch Displays include:

• BenQ

• Boxlight

• Clear Touch

• Clevertouch

• Infocus

• Microsoft

• Newline Interactive

• Promethean

• QOMO

• Recordex

• Sharp

• SMART Technologies

• Viewsonic


Diversimount
Exploded View
Diversimount Exploded View


Interactive Flat Panel Compatibility Chart
Hovermount Compatibility Chart
