Diversiboard for Projection
Diversiboard Projector Board is a one-of-a-kind steel panel surface designed for use in the classroom or boardroom. The board offers a matte surface and is ideal for use with a projector. Diversiboard is the FLATTEST projection surface in the industry while being FRAMELESS and dry erase-friendly!

Diversiboard Projector Board

Diversiboard is a one-of-a-kind, 100% STEEL panel surface designed for the classroom or boardroom and is the FLATTEST projection surface in the industry! Diversiboard for PROJECTION is specifically designed for the demands of today’s INTERACTIVE pen-based and finger touch solutions and features the following industry-exclusive design elements:

Common features of both Diversiboard variations:

      • 100% STEEL, supports magnetic devices – industry first!

      • No wood substrate to WARP! – LIFETIME Guarantee to
       hold 1.8mm– industry first!
      • FRAMELESS construction – industry first!
      • “EDGE-TO-EDGE” image space use!
      • Dry-erase friendly!
      • Durable powder coated finish
      • Mount flat to a wall OR over-chalk-board
      • A/V-friendly” sizes in 16:10 aspect ratio

Diversiboard MB – for ULTRA-SHORT THROW projection:

      • GLOSS surface
      • Sizes: 48” x 72”
      • 90” (48” x 77”), 96” (52” x 82”) and
      100” (56” x 85”) diagonal 16:10 aspect ratio


Diversiboard PB – for LONG-THROW ceiling mounted projection:

      • 45% MATTE surface
      • Sizes: 48” x 72”
      • 90” (48” x 77”), 96” (52” x 82”) and
      100” (56” x 85”) diagonal 16:10 aspect ratio


Diversiboard for Projection

Diversiboard Projector Board

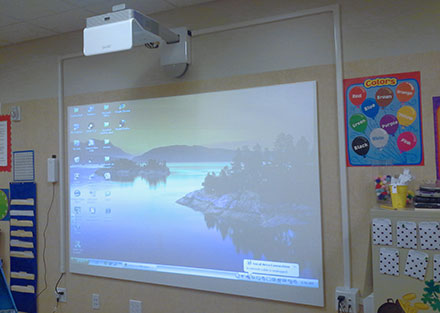

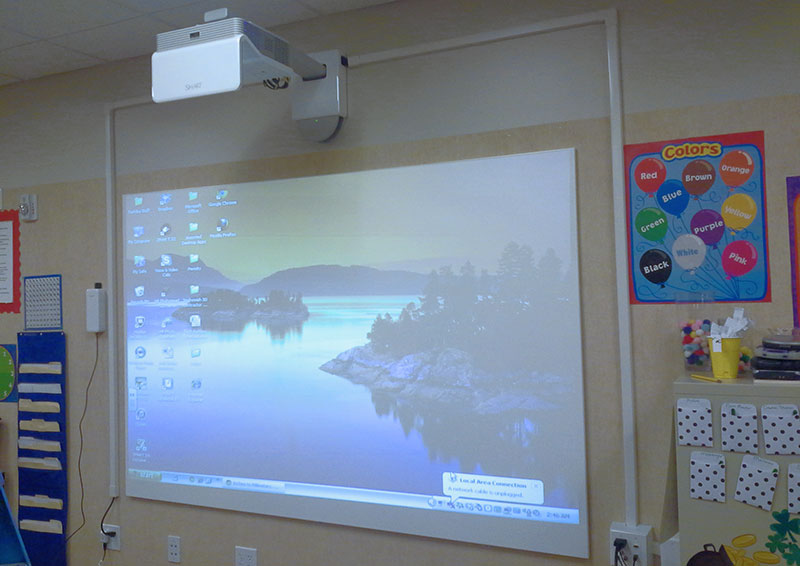

Diversiboard XL 100 with SMART LightRaise 60Wi
Diversiboard XL 100” with SMART LightRaise 60Wi

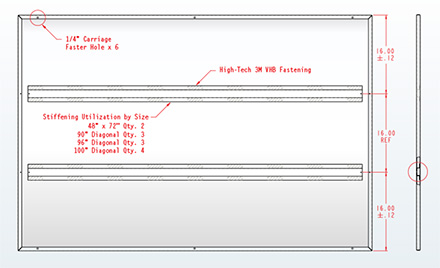

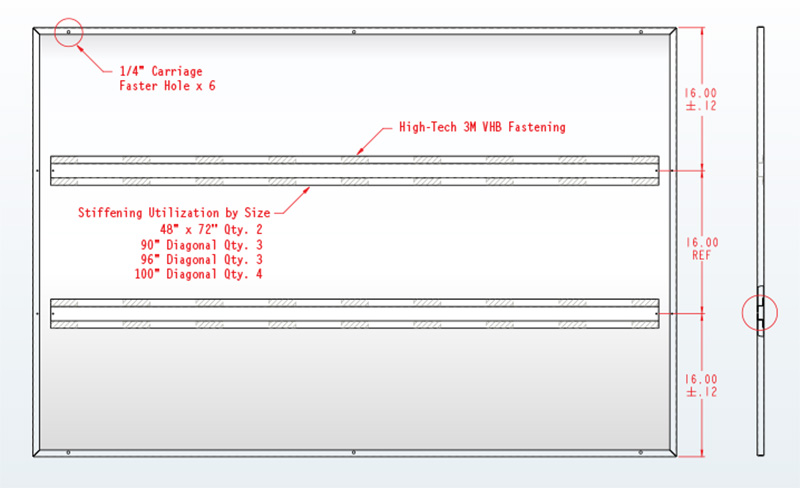

Specifications:
      • 100% steel, 18 guage, .048 material thickness
      • Double-formed edges, 90 degrees x 2, four sides
      • Horizontal stiffeners, steel, channeled
      • Flatness +/- 0.0511 inch (1.3mm)
      • Surface: proprietary paint
      • Cleaning: standard and alcohol-based dry erase solution

Download
overview of
Diversitrack™
for printing:
CLICK IMAGE

Diversitrack™ System

Our patented Diversitrack™ is the first sliding track mount system of its kind supporting the industry’s top brands of interactive whiteboards, standard and interactive projectors, dry erase boards and big screen LED TV’s!

Diversitrack™ allows you to retain your dry erase and chalk board space while enabling you to use the media device of your choice where you want it, when you want it. Best of all at a cost that is less than drilling into or removing your existing dry erase or chalk board!

Diversitrack™ employs a very secure and durable dual-track system, which includes rails that attach above and below your existing chalk or dry erase board. Diversitrack™ optional accessories include a mechanical brake, additional track sections and custom roller lengths.


Diversiboard & Projector

Edge to Edge Advantage


See the Difference

Diversiboard Care

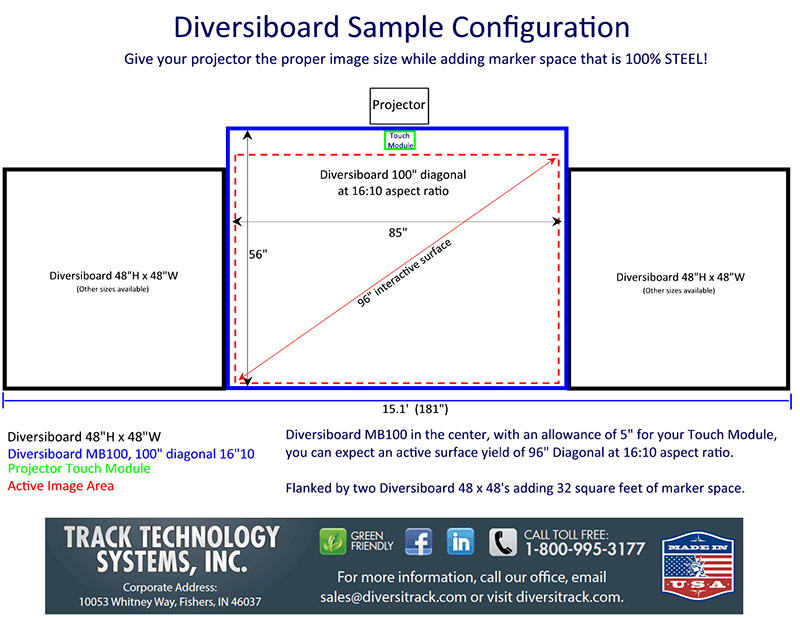

Diversiboard Sample Configuration
